Gigabyte GA-P31-DS3L: Xeon Support
#1
@1234s282

Hi!

I have exact the same problem as delidded had except I have Gigabyte GA-P31-DS3L with F9 BIOS.
[Image: 1k9n.jpg]


Motherboard: Gigabyte P31-DS3L rev 1.1 (uses an Award bios) F9 BIOS
Code:
http://www.gigabyte.com/products/product-page.aspx?pid=2615#bios

Processor: Xeon E5440 (SLBBJ revision E0)
[Image: 3tio.jpg]

Could you please make F9 BIOS for GA-P31-DS3L with Socket 771 microcodes?

Thank you in advance.
find
quote
#2
Hi

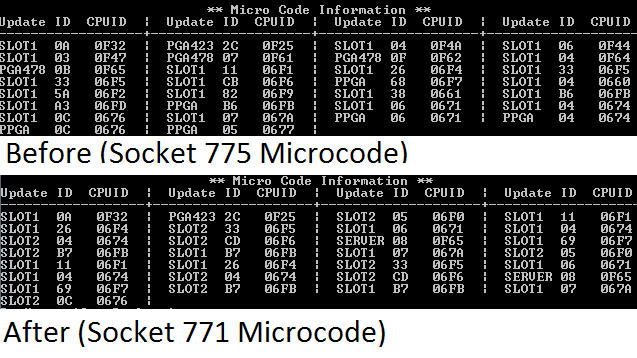

I made this a separate post as it is for a different motherboard. Here is the F9 BIOS For Your motherboard containing all the Socket 771 microcodes.

[Image: tbqfpz3iceg74zcfg.jpg]

Flash at your own risk! Good luck!

Code:
http://www.mediafire.com/download/c1xtufj6wdw9iyt

Regards
Admin
find
quote
#3
(01-16-2014, 12:15 AM)1234s282 Wrote: Hi

I made this a separate post as it is for a different motherboard. Here is the F9 BIOS For Your motherboard containing all the Socket 771 microcodes.

[Image: tbqfpz3iceg74zcfg.jpg]

Flash at your own risk! Good luck!

Code:
http://www.mediafire.com/download/c1xtufj6wdw9iyt

Regards
Admin

Thank you for your answer, and effort.

I managed to make BIOS with microcode for my CPU E5440 by inserting only cpu0001067a_plat00000044_ver00000a0b_date20100928.bin microcodes. Procedure allowed me to do that and CPU is recognized now.
find
quote
#4
Please post your successful mod to share with others! Smile
find
quote
#5
Hi.
Could you please make F10a BIOS for GA-P31-DS3L with Socket 771 microcodes?
My cpu is Xeon E 5440 (SLBBJ revision E0).

Motherboard: Gigabyte P31-DS3L rev 1.1 (uses an Award bios) F10a BIOS.

http://www.gigabyte.com/products/product...x?pid=2615&dl=#bios


Thank you in advance.
find
quote
#6
Did you try BIOS mod by genius239?
[Image: 2.jpg]
find
quote
#7
Thanks DeathBringer.I found the bios on the "genius" page, but I thought that it was only the original BIOS without modification to the 771.I will try it soon....
find
quote
#8
The board accepts the CPU right from the start without a bios modification it's booting windows and working fine. I would like to know if a bios mod is needed for full support or is this OK as it is.Thank you...
find
quote
#9
Post a screenshot of regedit with expanded key HKEY_LOCAL_MACHINE\HARDWARE\DESCRIPTION\System\CentralProcessor\0
And I need a screenshot of first (CPU) tab of CPU-Z with Xeon L5335 on this motherboard.
find
quote
#10
  • The message is too short. Please enter a message longer than 5 characters.


Attached Files Thumbnail(s)

find
quote
