GIGABYTE GA-880GM-UD2H FX8100 Support?
#1
Exclamation
May you add FX8100 Support? The CPU gets warm but does not complete POST.

CPUID 600F12

Thanks

http://www.cpu-upgrade.com/mb-AMD_(chipsets)/880G.html
FX-8100 - FD8100WMW8KGU / FD8100WMGUSBX

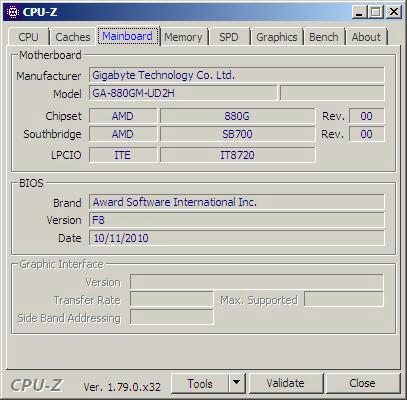

[Image: 20ek8wqlo4g2vm2zg.jpg]


Attached Files
.zip   88GMUD2H.zip (Size: 564.85 KB / Downloads: 6)
find
quote
#2
What is revision of your motherboard?
find
quote
#3
(01-06-2018, 01:34 AM)DeathBringer Wrote: What is revision of your motherboard?

1.4
find
quote
#4
Try to flash BIOS from 1.5 revision - version FA
find
quote
#5
I tested it but it said the Flash Type/ Size is MXIC 25L8005/8006 1M & The 88GMD2H5.FA Rev 1.5 BIOS is 2M...

I guess the BIOS is too large to flash to rev 1.4 ... I guess might have to remove a microcode & add fx8100 microcode i guess?

It does have DUAL-BIOS though if that's helpful for easy recovery?
find
quote
#6
Adding microcode doesn't add support for new CPU.
Original F8 BIOS has only 170.43K free space, but new modules in FA BIOS has 809.94K size.
BTW: microcode has only 14K size.
find
quote
#7
I downloaded BIOS F8 currently installed & BIOS Version FA...

It wouldn't flash because it said size is wrong.

F8 bios 1024KB
FA bios 2048KB
find
quote
#8
I need BIOS chip replacement to flash FA BIOS.
find
quote
#9
What does that mean? The BIOS Chips are soldered to the PCB & there are TWO bios chips Gigabyte Dual BIOS
find
quote
#10
You need to unsolder them, buy new chips, write them by hardware programmer and solder them in place of the previous ones.
find
quote
