[Request] Possible MSI PM8M3-V C2D support
#1
So I just got back from a local recycler and managed to find a rather interesting motherboard. It's an MSI PM8M3-V, and it uses a VIA P4M800 chipset with AGP and DDR. However, I have found another motherboard which appears to have the same chipset with a similar design, yet it has Core 2 support. I wonder if anyone could check for differences between these 2 images? Don't have time to test it at the moment but since it's not supported I am sure the system just won't POST. Both are Award if I'm correct.


Attached Files
.zip   W7211.350.zip (Size: 337.13 KB / Downloads: 0)
.zip   PM8PM-V_3.3.zip (Size: 319.25 KB / Downloads: 0)
find
quote
#2
Have you made a hardware mod to support Conroe?
find
quote
#3
(02-13-2022, 10:49 AM)DeathBringer Wrote: Have you made  a hardware mod to support Conroe?

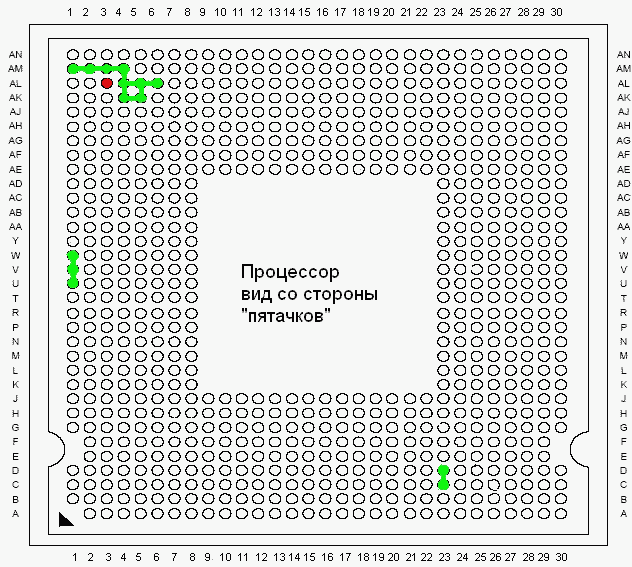

No, but you have me interested... where did you find this pinmod map? What motherboards will it work on?
find
quote
#4
The source is http://www.rom.by/book/Popytka_ukrotit_Conroe
This pinmod is first step only.
Second step is cross-flashing BIOS from suitable motherboard. Adding support for Conroe into existing BIOS is too difficult.
Third step is BIOS adaptation.
